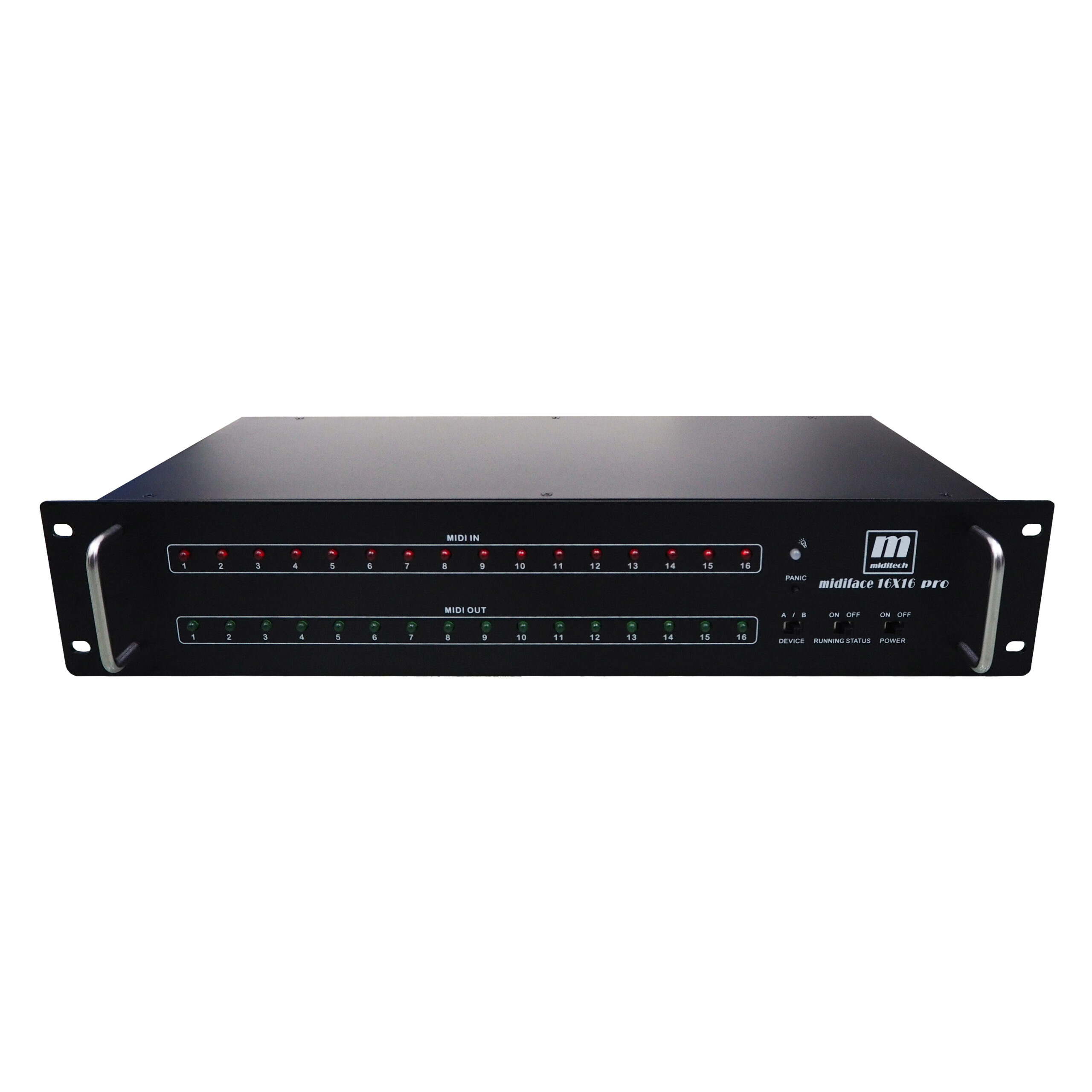

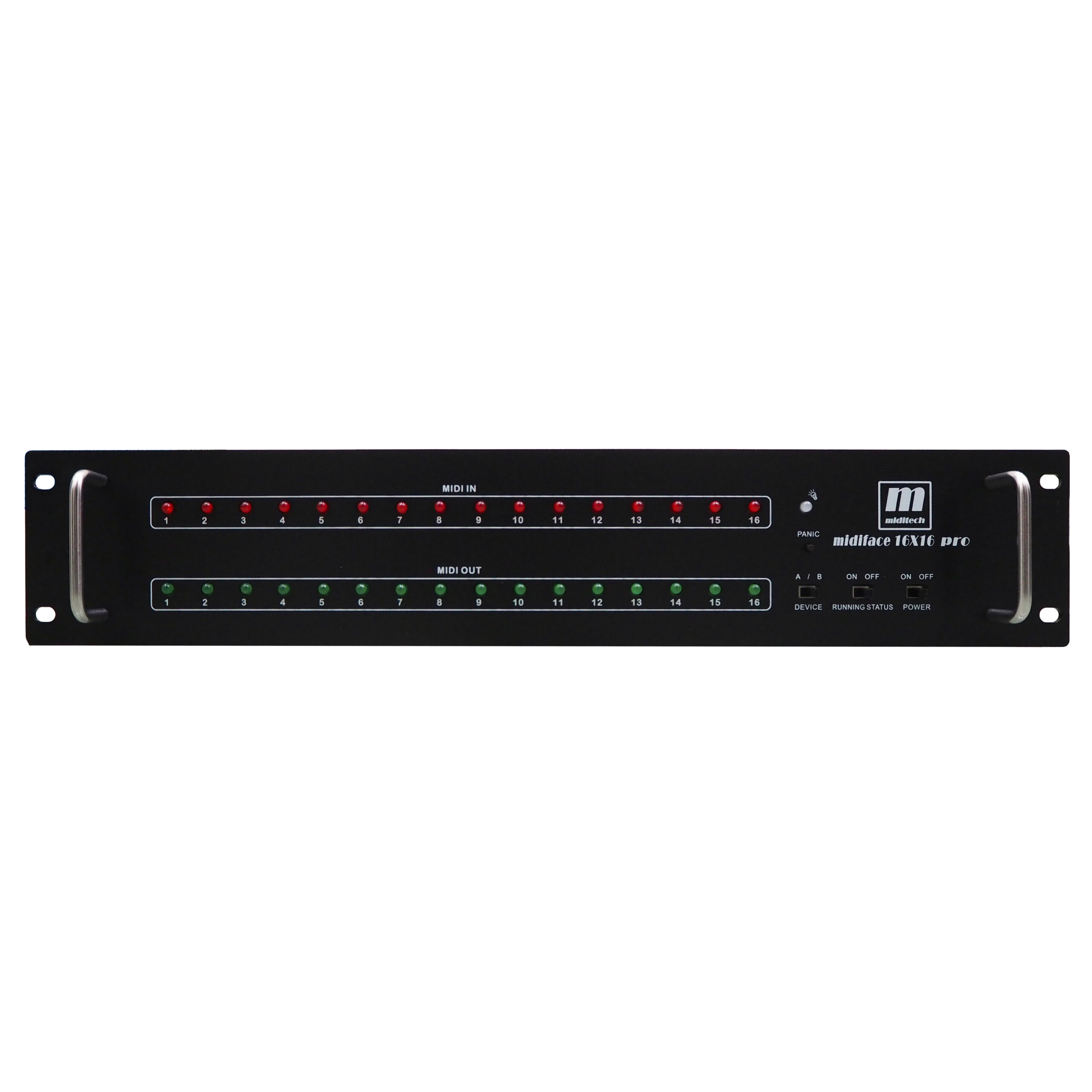

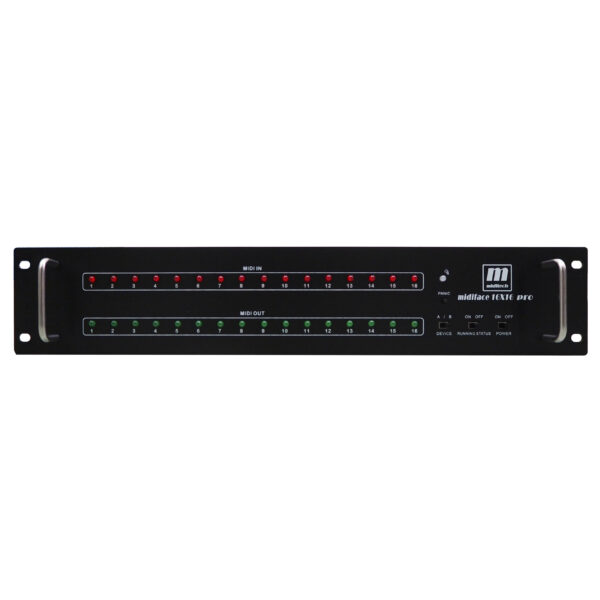

The Midiface 16×16 Pro is the perfect solution for anyone who wants to reliably connect multiple MIDI devices. With a total of 256 MIDI channels in a rugged 19-inch 2U chassis, this USB MIDI interface delivers impressive performance and rock-solid stability for both studio and live use.
Thanks to 16 MIDI inputs and 16 MIDI outputs, you maintain full control over your setup at all times—no matter how complex it is. The interface is fully class-compliant and therefore requires no drivers on macOS or Windows XP through Windows 11.
Inside, Miditech relies on Ploytec’s proven GM5 technology, which ensures extremely precise timing and flawless SysEx data transmission. When the interface is powered via USB 3.0, the MIDI flow benefits from even better prioritization—ideal for reliable real-time performance with your DAW.
With the switchable “Running Status” feature, we’re taking our interfaces to a new MIDI level!
Running Status is a feature of the MIDI protocol that makes data flow more efficient. When multiple identical MIDI messages are sent in succession, the status byte does not need to be retransmitted each time. This reduces the amount of data and speeds up MIDI transfer. The feature can also be disabled for older hardware.
And if that’s not enough, you can combine two Midiface 16×16 Pro units, or an older Midiface 16×16 with a Midiface 16×16 Pro, to manage 32 input and 32 output ports. Direct access to up to 512 MIDI channels—no other hardware can do more!
Features at a glance
Dimensions: 48.3 × 9 × 20.5 cm

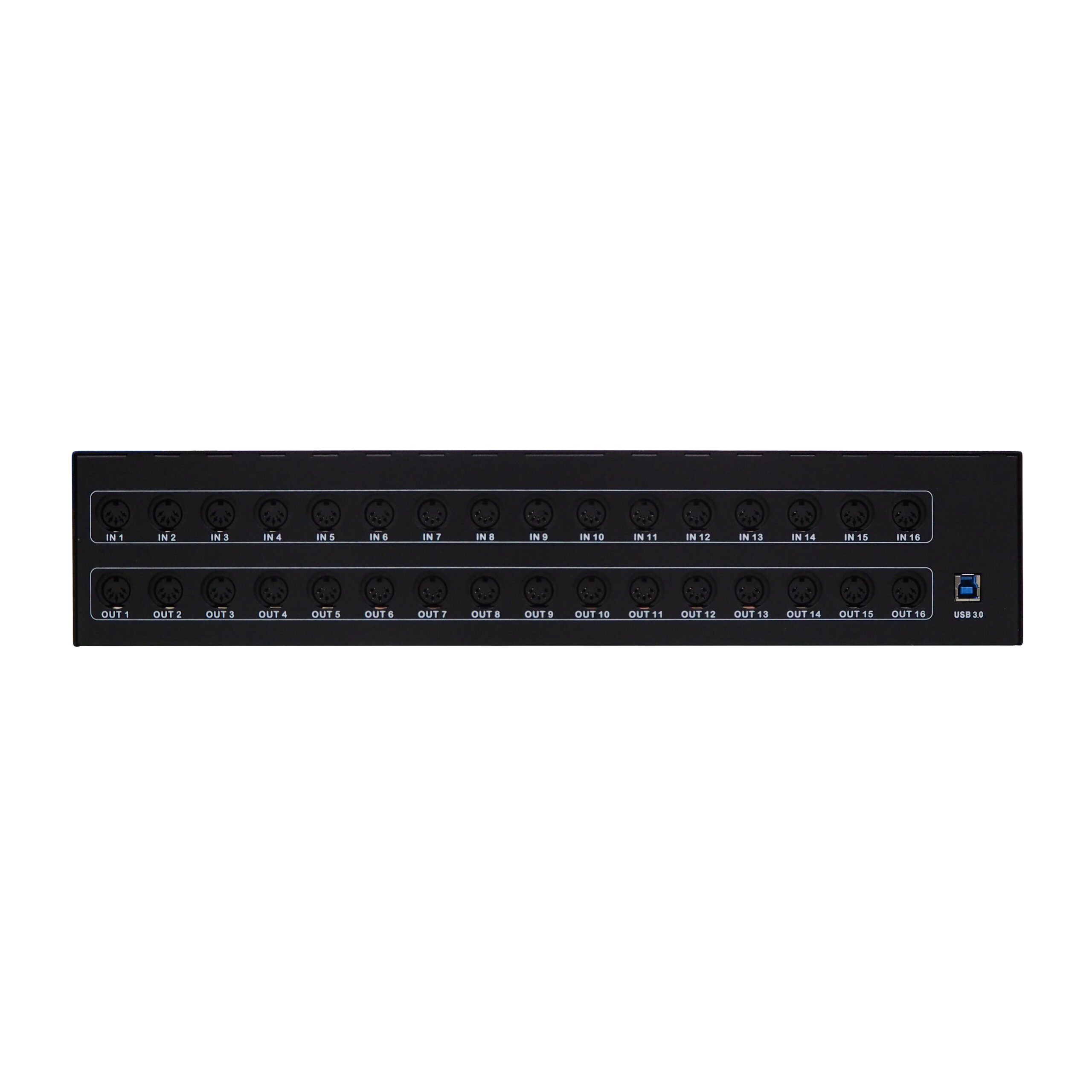

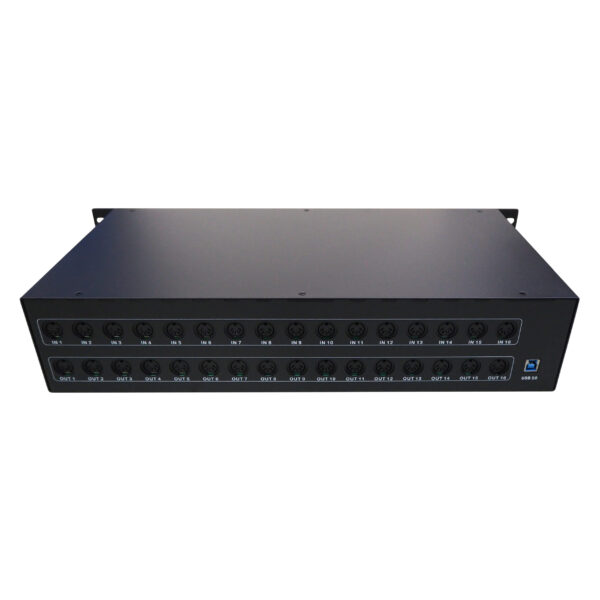

16x MIDI IN / 16x MIDI OUT
256 MIDI channels
Compatible with USB 1.0, 2.0, and 3.0
USB bus-powered – no external power supply required
Provides 5V MIDI power
Plug & Play: No driver required for macOS and Windows (up to Windows 11, 32/64-bit)
Includes USB cable
Includes Miditech Free Software Bundle
